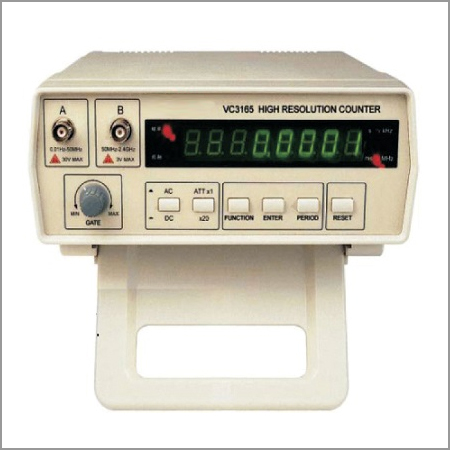

Frequency Counter

Frequency Counter
Frequency Counter
Send Inquiry
Product Code : GBG105
Product Description

With the support of our adept team, we are able to manufacture and supply premium quality Frequency Counter that is used to measure frequency of an electronic device. Manufactured in compliance with international quality standards, this product is designed by our experienced professionals. Our highly qualified quality analyst checks the entire range strongly before supplying to the client. We also offer this Frequency Counter in varied customized options.

Features:

  • Accurate dimensions

  • High performance

  • Longer service life





Features:

  • 8digits green LED display

  • Selective range, high stability

  • Two Channels, operation mode memory

  • Range and gate time adjustable

  • Power supply: AC 110V/220V, +10%, Max. consumption : 5W

Technical Specification :-

 Frequency Range : 0.01Hz ~ 2.4GHz

Cyclic Measurement Range : 0.5nS ~ 10S

Attenuation : 20dB

Channel A (40MHz ~ 2.4GHz) :
Sensitivity: 50m Vrms
Input resistance: 50Ω
Maximum Input: 3V

Channel B (0.01Hz ~ 40MHz) :
Sensitivity: 30m Vrms
Input resistance: 1MΩ (<35pF)
Maximum Input: 30V

Accuracy : Time base error x Frequency+1Digit

Time Gate : 100ms ~ 10s

Input Impedance : 1MΩ
